Engineered for high performance in utility-scale solar applications, our High-Capacity Cable Hanger delivers 50% faster installation, guaranteed cable separation, and complete code compliance. With a rigid twin-catenary structure and compliant ground design, it will make your installs quicker, cleaner and fully future proof.
- Single mounting bracket
- Simple snap fix on to the catenary

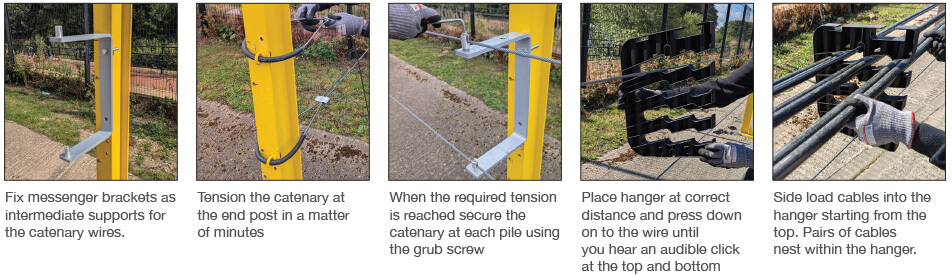

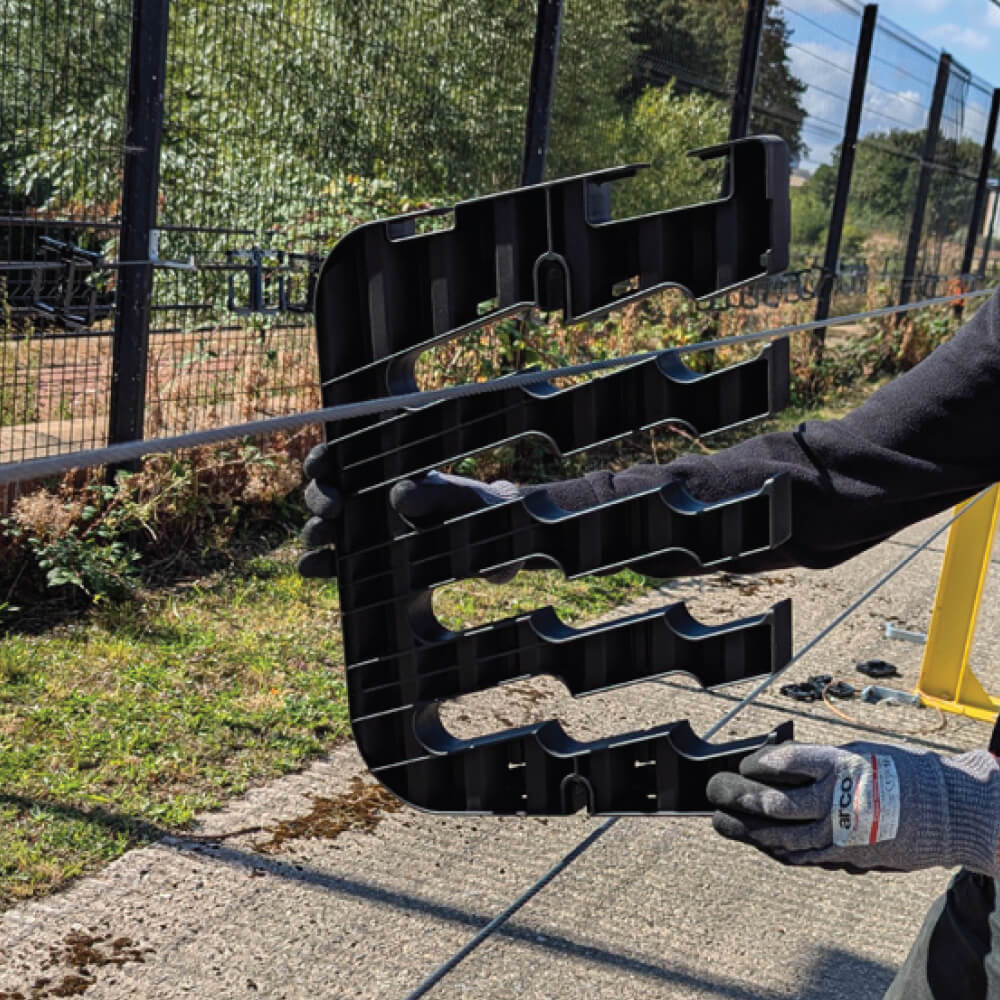

- Install the hangers on to the catenary, 5 seconds per hanger
- 50% faster than other catenary systems

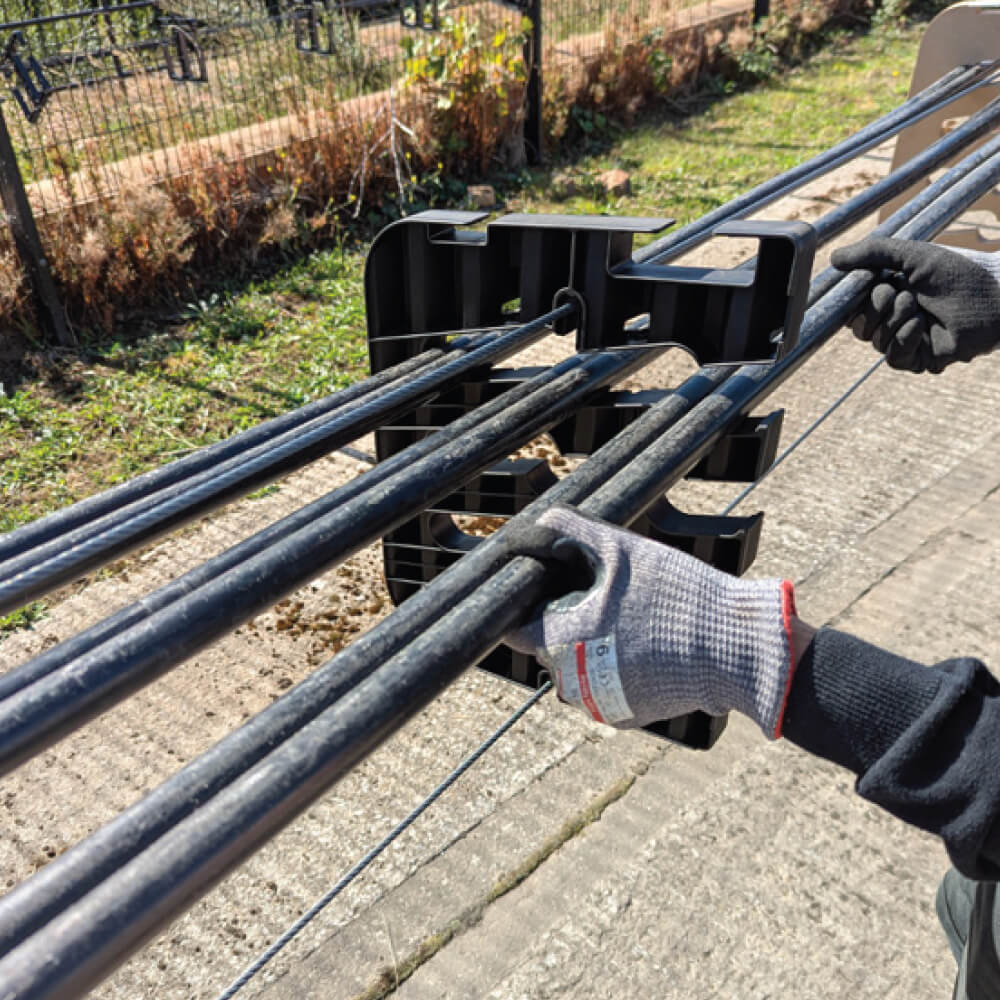

- High Capacity, one hanger can be specified site-wide, accommodating up to 24× 500 mm² cables and 48× 8 mm² string cables, plus grounding and data
- Gates to be used on corners and challenging terrain to guarantee cable separation
- ETL listed to UL 2239
Material
Body: PA 30% GF UV stabilised
Description
| Load Rating | 115 kg |
| Working Temperature | -40ºC to +90ºC |
| Design Life | 30 years |
| Insulation Resistance | 2500 v |
